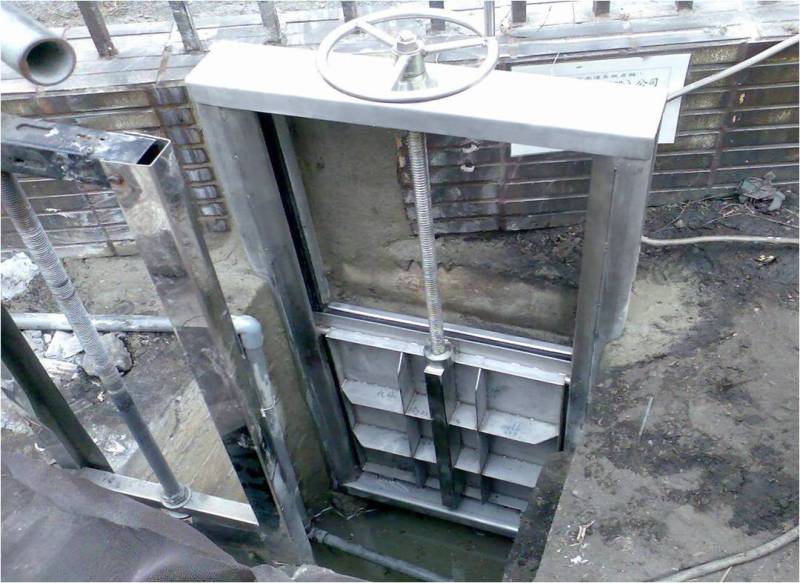

CAST IRON SLUICE GATES AS PER IS: 13349 OR AWWA-C560 OR BS:7775

Introduction

This is a rectangular Sluice Gate suitable for Wall mounting with unseating head up to 30 Meter and off seating head up to 20 Meter as standard with modification higher head is also available.

Features and benefits

This Sluice Gate is very robust and can be mounted on pipe flange, wall with flange back or flat back mounted with or without thimble. Due to wall thimble is grouted in concrete. This gate can be easily mounted and dismounted with nut bolts fitted on thimble.

This sluice gate is used where least leakages are

desired. This gate gets verified at shop for the desired water pressure on wall for actual leakages as per

quality standards..

•  F type or E type wall thimble can be used as per requirement.

•  Adjustable wedges with non corrosive wedge plates helps to seal the faces.

•  Stem guide is provided if the operating height is more than 2 Mts. the gate height along with the couplings if required.
